ESP60 – 37.8″ Digital Stretch Screen

Dynamic shelf display

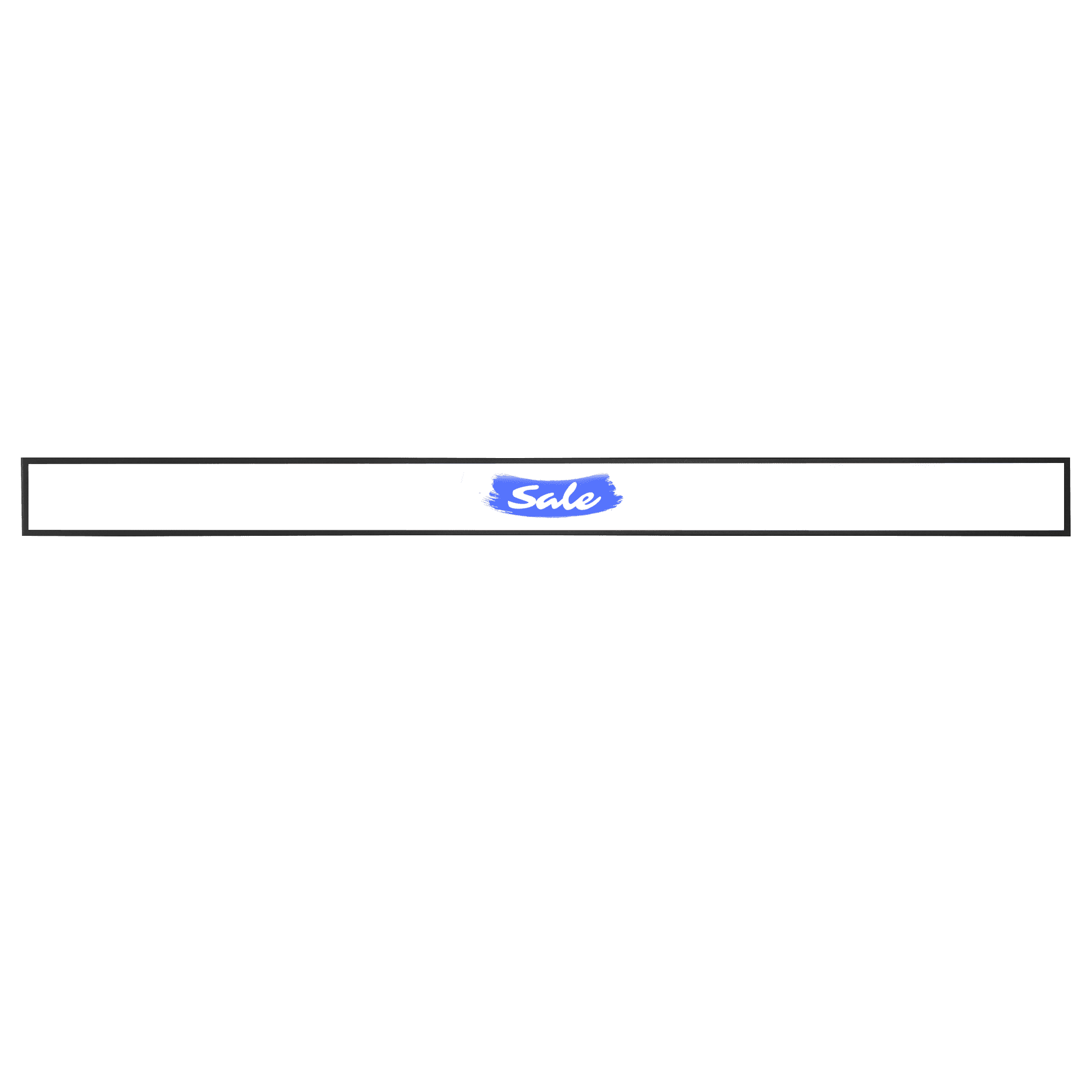

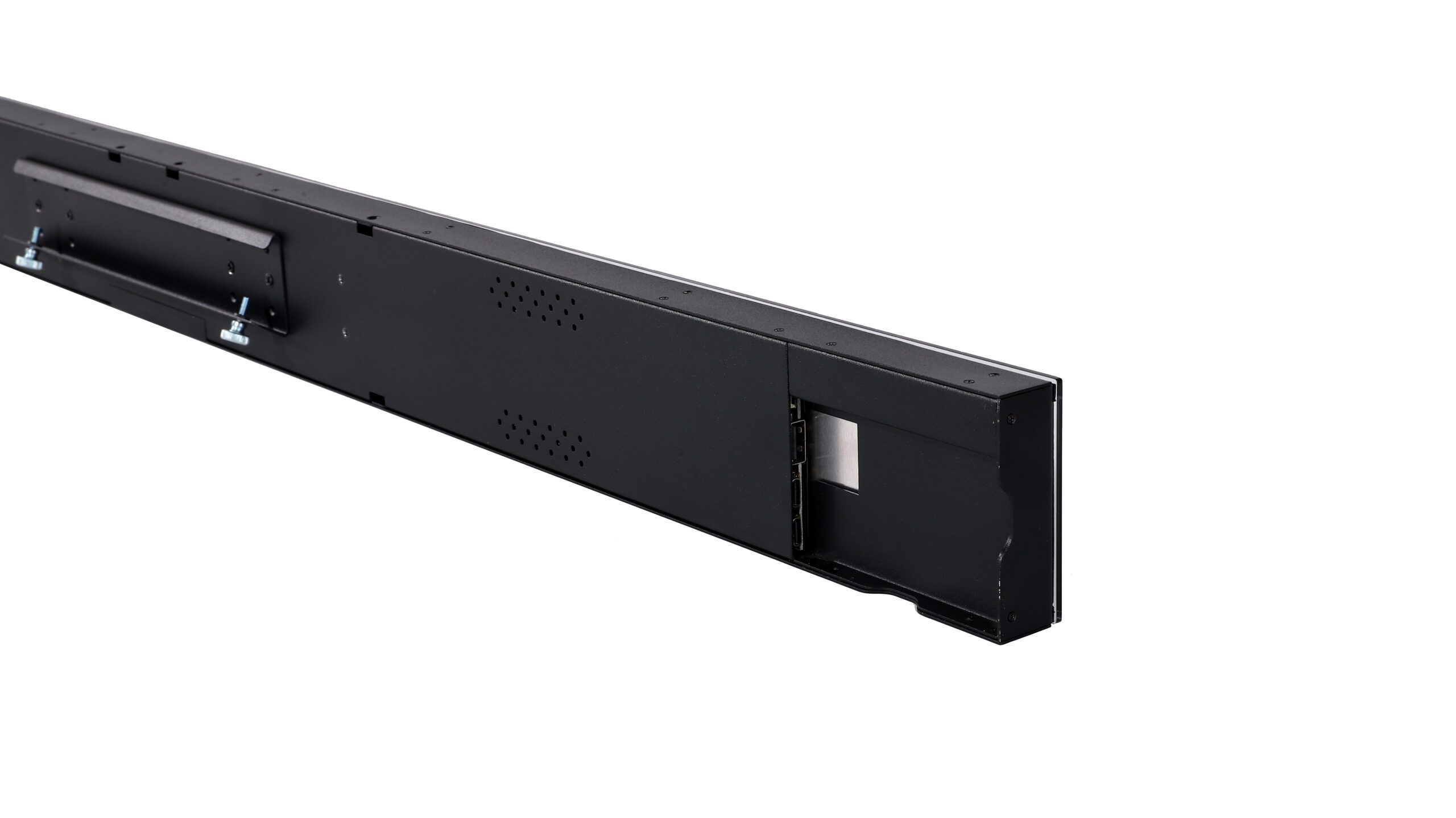

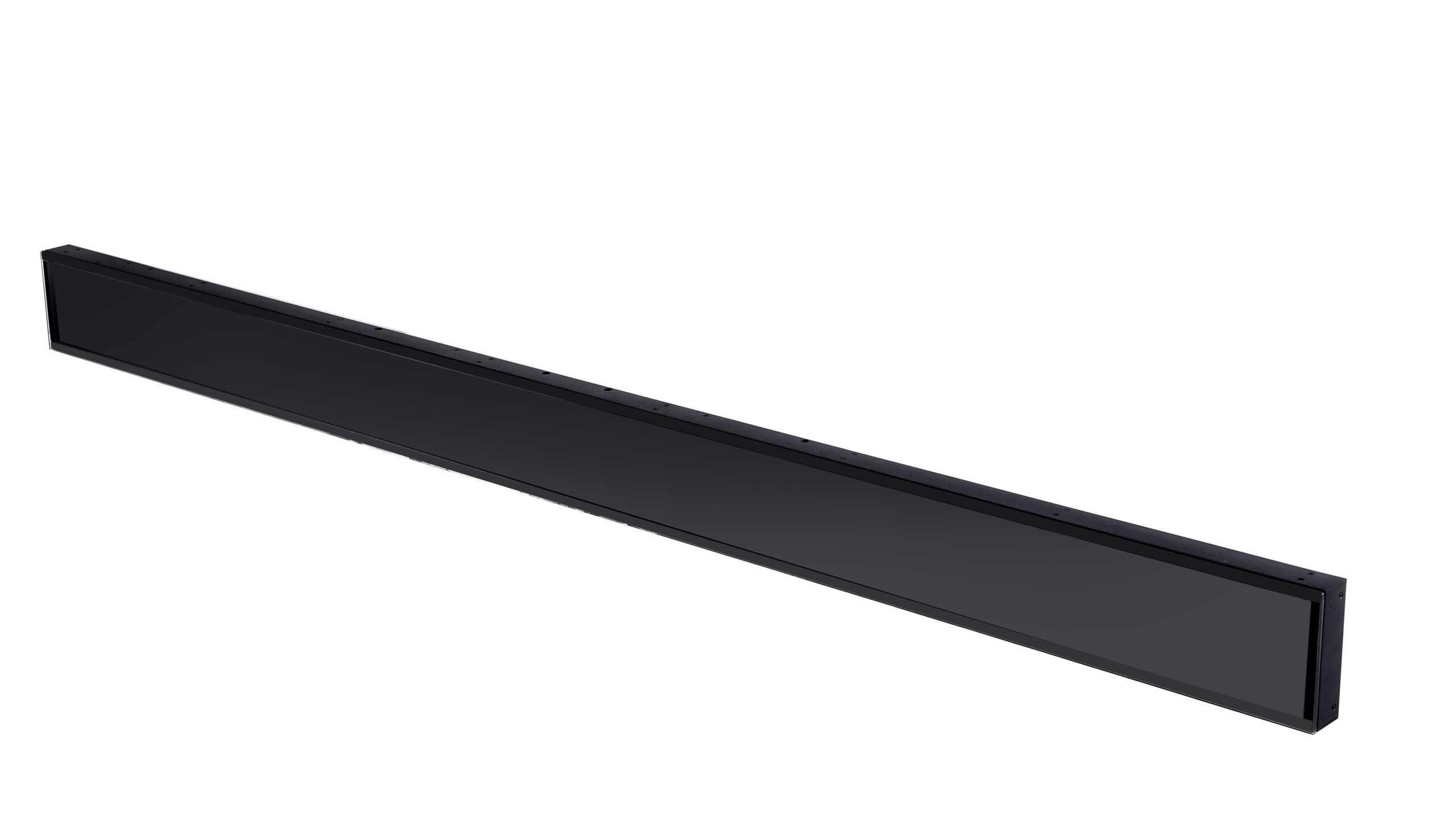

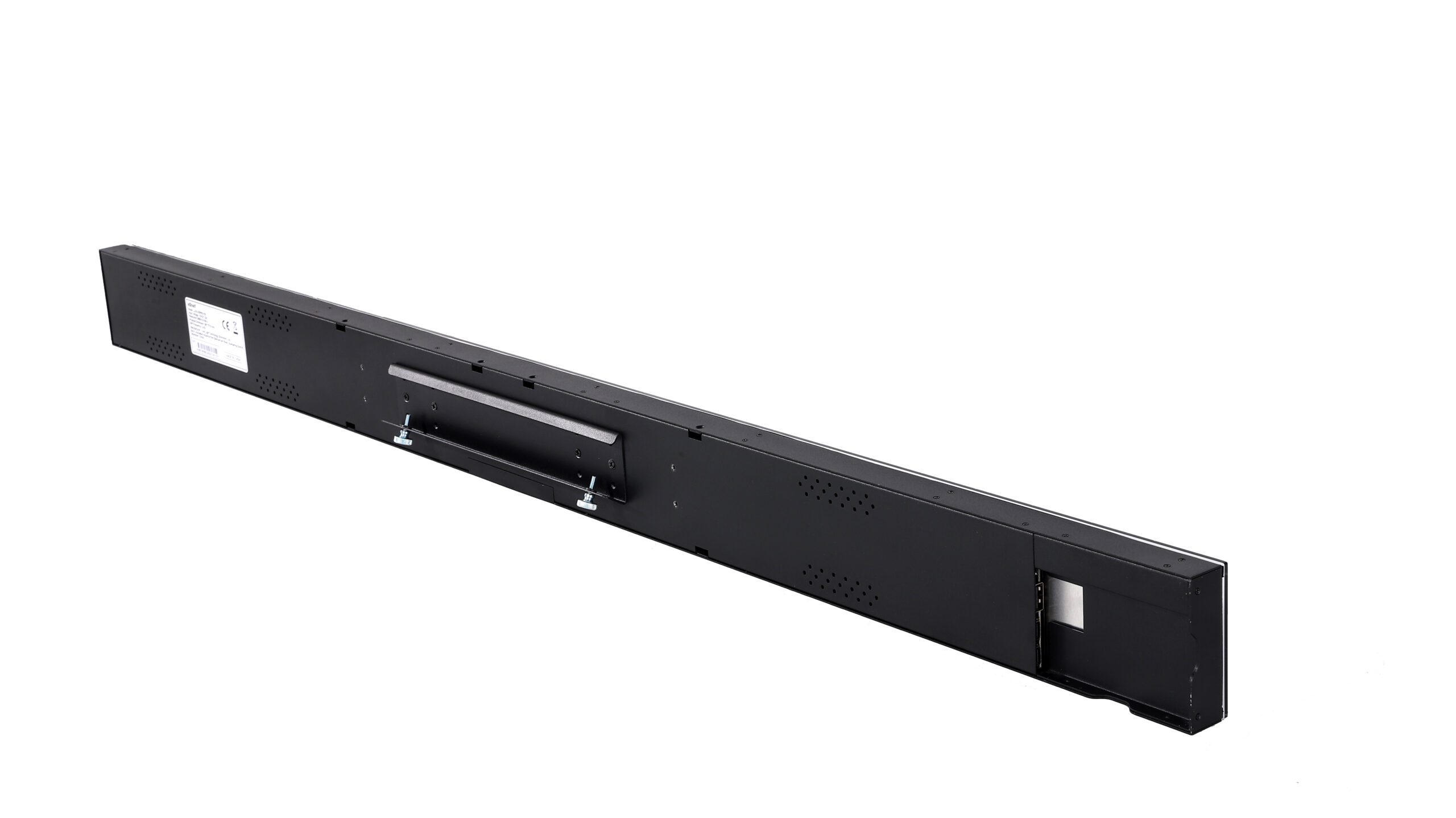

ESP60 – 37.8″ Digital Stretch Screen

Ultra-Wide, Ultra-Slim Shelf Signage with Premium Clarity

The eshelf ESP60 is a premium 37.8” digital stretch screen built for high-impact messaging in retail, hospitality, and commercial environments. Designed for shelf-edge installation and compact spaces, its ultra-wide, panoramic format brings attention-grabbing visual performance to any display setup.

With an ultra-crisp 2880 × 158 resolution, 500-nit brightness, and 1.07 billion colors, the ESP60 delivers bright, sharp content across a sleek LED-backlit panel. Whether you’re showcasing promotional offers, product information, dynamic menus, or branded visuals, the ESP60 enhances content clarity with a wide 178° viewing angle and 3000:1 contrast ratio.

Engineered for 24/7 continuous operation, this unit runs independently with no network or external player required. Powered by Android 9.0 and a T972 Quad-Core CPU, the ESP60 handles media playback smoothly and efficiently. Just upload content via USB or TF card for simple plug-and-play usage.

Built for global deployment, the ESP60 supports wide voltage input (DC 12V) and includes both USB-C and USB-A ports for flexible connectivity. Its optional 5G Wi-Fi, Bluetooth 4.2, and daisy-chaining support allow integration into complex digital signage systems or single-point displays with ease.

Long LCD screen

View Spec Sheet for ESP60 – 37.8” Digital Stretch Screen >

Long LCD screen

View Spec Sheet for Wide Input Model ESP60 – 37.8” Digital Stretch Screen >

Why Choose the ESP60?

✔️ Small but powerful visual presence
✔️ Plug-and-play simplicity with Android OS
✔️ Ideal for high-density product areas
✔️ Efficient power usage and easy installation

In-aisle digital signage

Screen Size

37.8″

In-aisle digital signage

Resolution

2880 × 158

In-aisle digital signage

Brightness

500 cd/m²

In-aisle digital signage

Contrast Ratio

3000:1

In-aisle digital signage

Frequency

60 Hz

In-aisle digital signage

Dimensions

977.6 × 70.4 × 21.0 mm

In-aisle digital signage

Backlight

LED

In-aisle digital signage

Colors Depth

1.07 billion colors

In-aisle digital signage

Response Time

3 ms

In-aisle digital signage

Active Area

959(H) × 52.6(V) mm

In-aisle digital signage

Viewing Angle

178° (V) / 178° (H)

In-aisle digital signage

Lifespan

30,000 hours

Electronic retail label

Perfect For:

  • Retail shelf-edge price and product displays
  • Smart labeling in convenience and electronics stores
  • Promotional visuals in compact spaces
  • Multi-screen messaging setups

Key Benefits

  • Ultra-Wide 37.8” Display – 2880 × 158 resolution in a narrow horizontal format perfect for shelf-edge signage
  • Vivid Visual Performance – 500 cd/m² brightness, 3000:1 contrast ratio, and 1.07 billion display colors
  • Standalone Playback – Play media directly from TF card or USB without external hardware
  • Powered by Android 9.0 – Smooth performance for video, image, and audio content
  • Energy Efficient – Consumes ≤28W with reliable 12V DC input
  • Compact & Lightweight – Slim 21mm design with 1.8 kg weight makes installation easy
  • Flexible Integration – Supports power daisy-chaining and optional dual-band Wi-Fi

System & Performance

  • Operating System: Android 9.0
  • CPU: T972 Quad-core ARM Cortex-A55 @ 1.9GHz
  • RAM: 2GB (optional upgrades to 4GB/8GB)
  • Storage: 16GB eMMC (optional upgrades to 32GB/64GB)
  • Expandable Storage: TF card slot (up to 128GB supported)

Media Format Support

  • Video: H.265, H.264, VC-1, MPEG-1/2/4, VP8 – up to 1080p @ 60fps
  • Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
  • Images: JPG, BMP, PNG (supports slideshow, zoom, and rotation)

Connectivity & Interfaces

  • Wi-Fi: Built-in 2.4G (optional upgrade to dual-band 2.4G/5G)
  • Bluetooth: v4.2
  • Ports:
    • 1× USB-C Power In/Out (for daisy chaining)
    • 1× USB-C Power Input (DC 12V)
    • 1× USB-A
    • 1× Reset Button

Power & Environmental

  • Power Consumption: ≤28W
  • Voltage Input: DC 12V
  • Operating Temperature: 0℃ to 50℃
  • Storage Temperature: -20℃ to 60℃
  • Operating Humidity: 10%–85%
  • Storage Humidity: 5%–95%
  • Net Weight: 1.8 kg
  • Carton Dimensions (5 pcs): 1110 × 315 × 135 mm
  • Gross Weight (5 pcs): 11.85 kg

Accessories & Warranty

  • Optional Accessories: Power adapter, mounting bracket
  • Warranty: 1 year standard (extendable options available)

Ready to Deploy the ESP60?

Reach out today for pricing, demos, and deployment options.
Phone: 1.704.909.7361
Email: info@luxx.com
