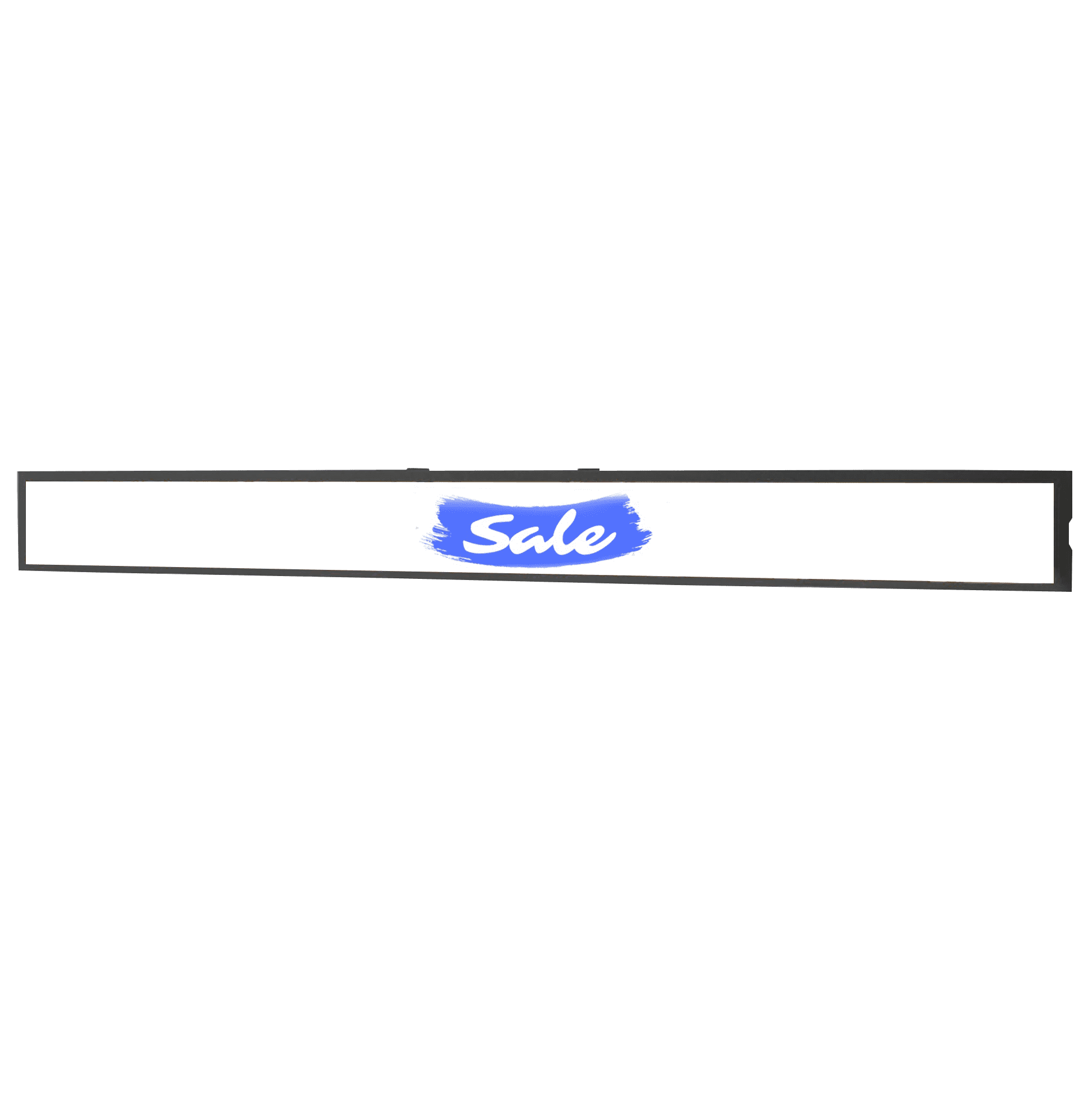

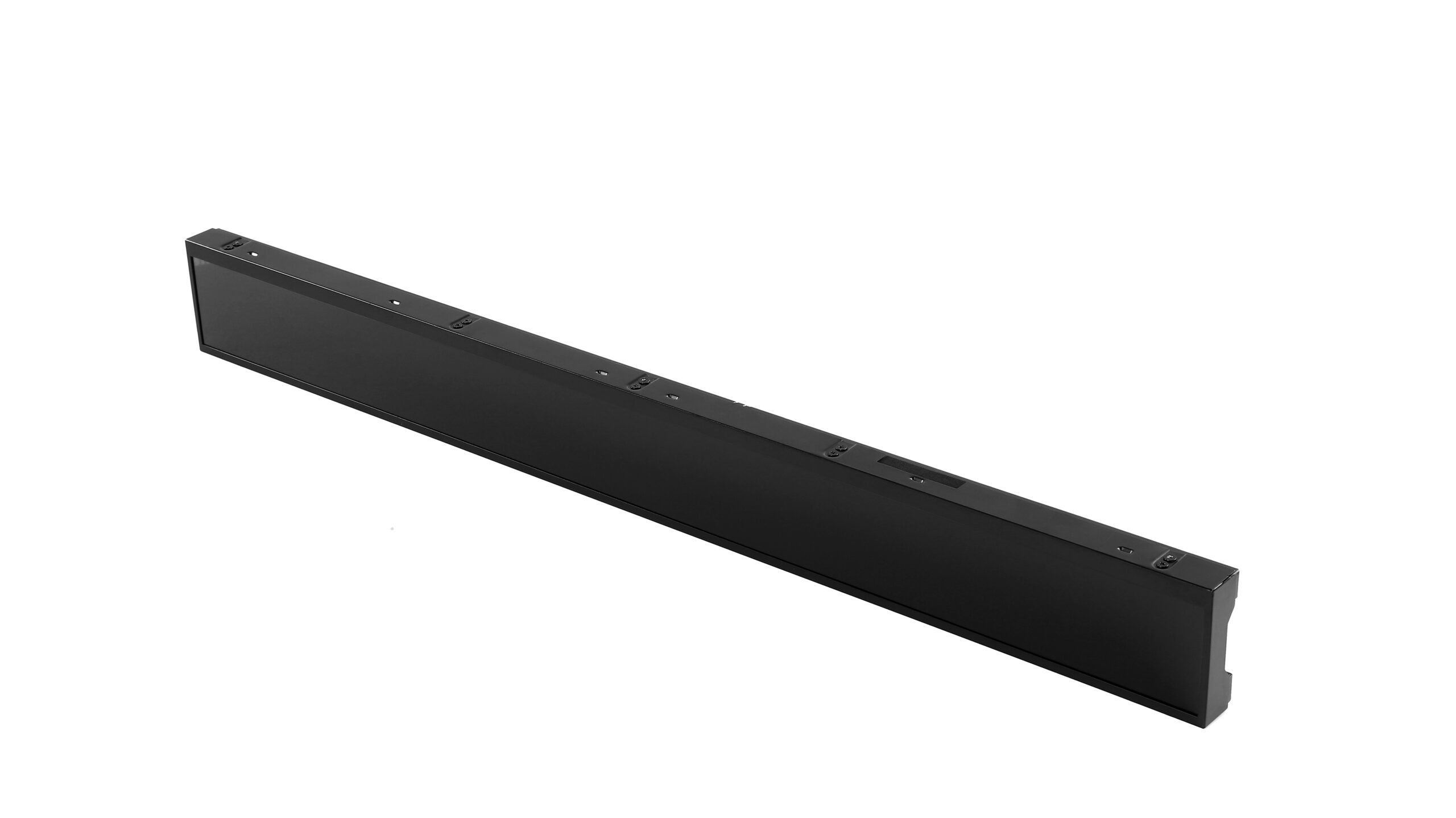

ESP30 – 23.1” Digital Stretch Screen
ESP30 – 23.1” Digital Stretch Screen
Ultra-Wide, Ultra-Bright Shelf-Edge Display for 24/7 Commercial Signage
The eshelf ESP30 is a powerful 23.1” retail digital display designed to bring maximum visual impact to retail, hospitality, and commercial environments. With an ultra-wide aspect ratio, this display is ideal for shelf-edge advertising, promotional messaging, and directional signage where space is limited but visibility is crucial.
Delivering 1920 × 158 resolution with a super-bright 700 cd/m² LED backlight, the ESP30 ensures your content stays vivid and readable—even in well-lit environments. Its 16.7 million color support and fast 3ms response time guarantee dynamic, eye-catching visuals.
The ESP30 is designed for 24/7 continuous operation, making it perfect for high-traffic areas. It features stand-alone playback, meaning it doesn’t require a network connection or external media player—just upload your content and let it run. With Android 8.1 OS onboard, and support for various video, image, and audio formats, the ESP30 is versatile and easy to deploy.
Why Choose the ESP30?
✔️ Small but powerful visual presence
✔️ Plug-and-play simplicity with Android OS
✔️ Ideal for high-density product areas
✔️ Efficient power usage and easy installation
Perfect For:
- Retail shelf-edge price and product displays
- Smart labeling in convenience and electronics stores
- Promotional visuals in compact spaces
- Multi-screen messaging setups
Key Benefits
- Ultra-Wide Display Format – 23.1” stretch screen ideal for shelf-edge, directional, or menu bar content
- Super-Bright Visuals – 700 cd/m² brightness and full LED backlight ensures strong visibility
- Standalone & Network-Free – No external devices or internet connection required to operate
- Compact & Lightweight – Slim 15mm profile fits in tight spaces, weighing just 0.65kg
- Powered by Android – Android 8.1 OS with media flexibility for videos, images, and audio
- 24/7 Commercial Use – Built to run continuously with long 30,000-hour screen lifespan
System & Performance
- Operating System: Android 8.1
- CPU: Rockchip PX30, Quad-core ARM Cortex-A35
- RAM: 1GB DDR3 (upgradable: 2GB/4GB/8GB options)
- Storage: 8GB eMMC (optional: 16GB/32GB/64GB)
- Memory Extension: TF card slot supports up to 64GB
Media Format Support
- Video: 1080p @ 60fps (H.265, H.264, VC-1, MPEG-1/2/4, VP8)
- Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
- Images: JPG, BMP, PNG (rotation, zoom, and slideshow support)
Connectivity & Interfaces
- Wi-Fi: 2.4G
- Bluetooth: v4.0
- Ports:
- 2× Micro USB (OTG)
- 1× TF Card Slot
- 1× USB-C Power Input (12V, adapter required)
- 2× Micro USB (OTG)
Power & Environmental
- Power Consumption: ≤18W
- Input Voltage: DC 12V
- Operating Temp: 0℃ to 50℃
- Storage Temp: -20℃ to 60℃
- Humidity Tolerance: 10%–85% (operating), 5%–95% (storage)
- Net Weight: 0.65 kg
- Gross Weight (5 units): 5 kg
- Package Dimensions (5 units): 820 × 300 × 140 mm
Accessories & Warranty

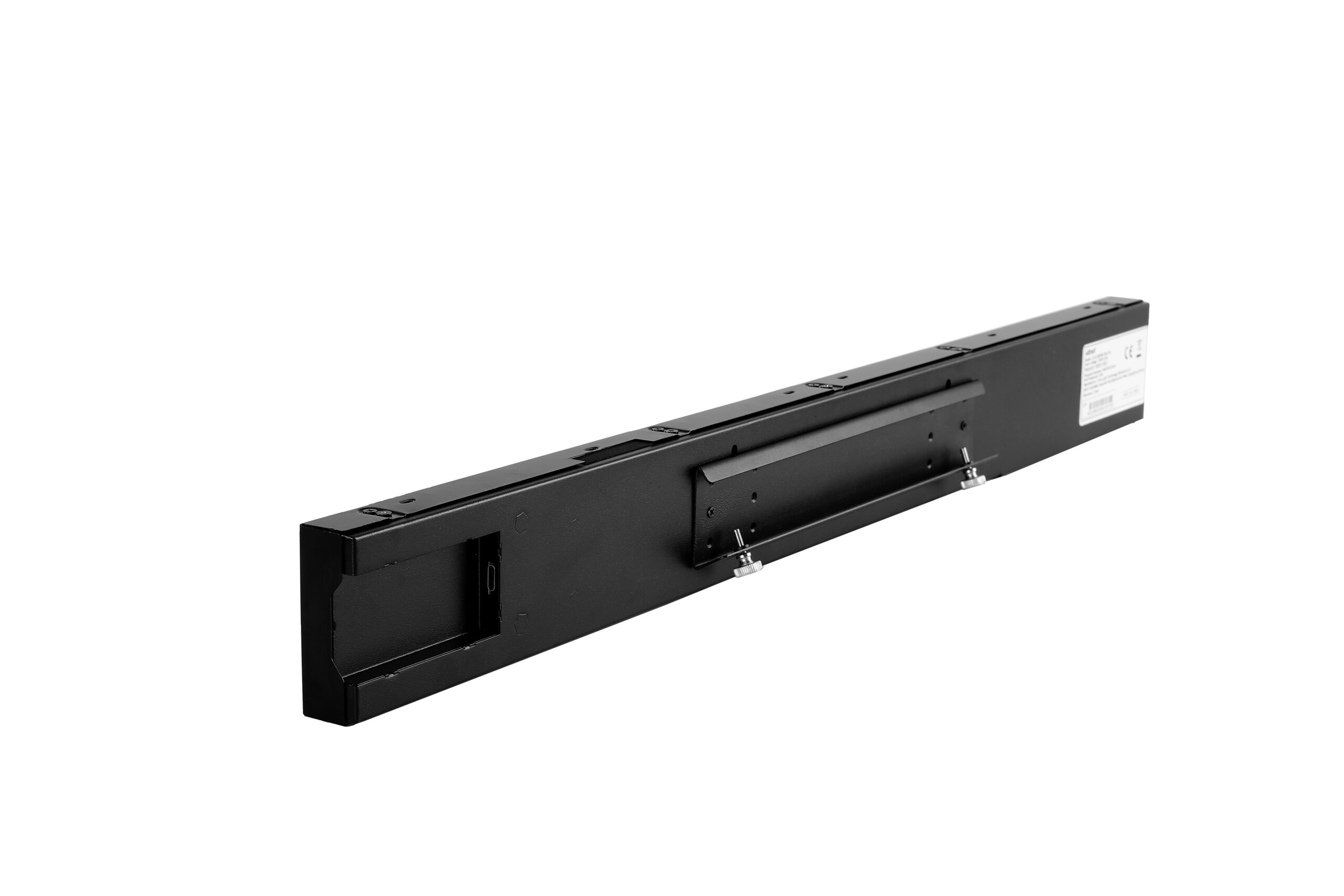

- Optional Accessories: Power adapter, mounting bracket, OTG cable
- Warranty: 1 year (extendable options available)
