Take consumer engagement to new levels with eShelf, which combines interactive front display screens, stand-out product illumination and those extra tools you need to shine in a snap.

Perfect for supermarkets, liquor stores, department stores, and other retail applications

Put your message at their fingertips

  • Vibrant LCD Display
  • Low operating temperature
  • ESL function

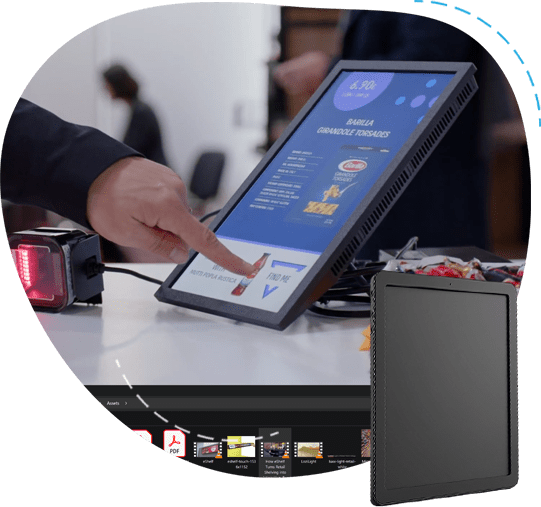

  • Touch Screen
  • Kiosk function

With eShelf, you can...

Display It

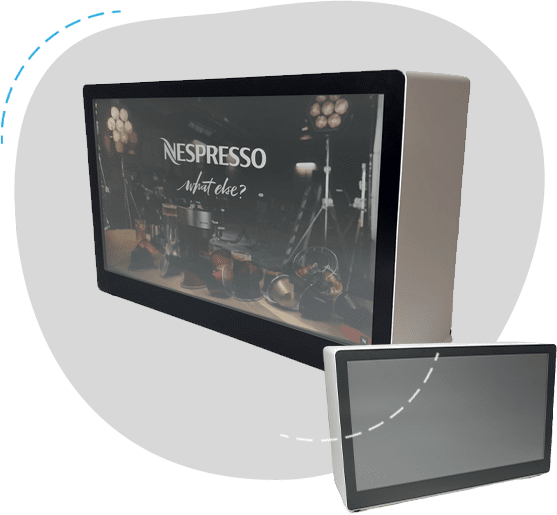

Our vibrant LCD display is a small form ultra-bright 700 NIT screen that can be used to take your in-store product advertising and communications to the next level.

From displaying engaging advertising and videos to spotlighting pricing, content management is quick, easy and remote via the built-in WiFi.

Mount It

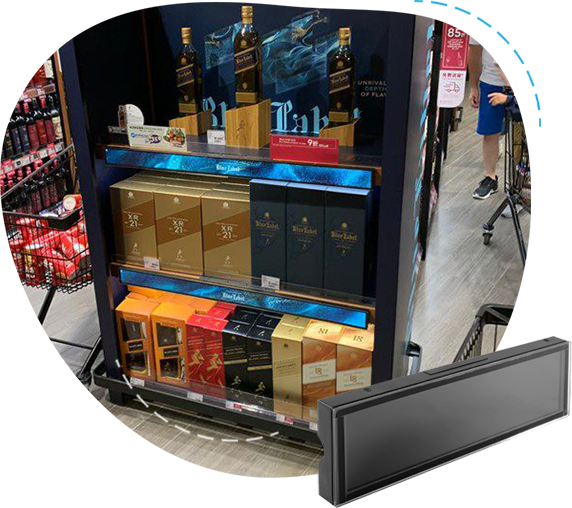

Easily mount eShelf to your existing shelving. The aluminum profile mounting rail accommodates multiple screens and shelf tags. A Power Track can be mounted to the back.

Power It

LUXX Power Track System is a key part in eShelf power distribution when multiple LCD screens or multiple layer mounting is needed.

The system is composed of a Vertical Power Track, several Horizontal Power Tracks and Power Feed Connectors.

Build the perfect solution for your brand

With our suite of retail solutions

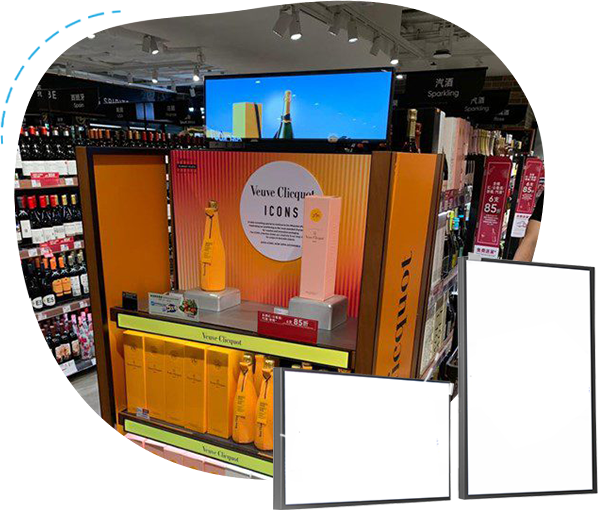

LED panels and snap frames
Backlighting that offers incredible light output, even illumination, low power consumption and superior LED clarity.

Under shelf lighting
Clean, crisp and bright light that adds unparalleled light quality to any space.

Shelf Tag Light
Lights both price tag and shelf below.

Magnetic wiring, power supplies and distribution
Easy and optimized power solutions.

Rollable Power Track
Energize your retail metal shelves with our ultra-flat 2.2mm power track, which rolls out to seamlessly fit between the back wall and shelf decks without requiring equipment changes.

Specifications

LCD Screen

Model Screen Size Resolution – V x H (px) Active Area
H × V (mm)
Physical dimensions
L x H x D (mm)
Brightness
(nits)
Contrast Ratio Colors Lifespan System Input
Voltage
Polarity Protection Power Data Sheet
LUXX-ESP10-500

LUXX-ESP10-500-W

8.8 inch 1920 x 480 218.88 × 54.72 240.6 x 69.6 x 16 500cd/m2 800:1 16.7M 30000 hours Android 8.1  12V DC
15-36V DC
no
yes
≤10W 8;8

8.8 Wide Input

LUXX-ESP15-300

LUXX-ESP15-300-W

15.6 inch 1920 x 1080 344.16 × 193.59 357 x 211.4 x 19 300cd/m2 3000:1 16.7M 30000 hours Android 8.1 12V DC
15-36V DC
no
yes
<20W 15.6

15.6 Wide Input

LUXX-ESP20-500 16.4 inch 1366 x 238 409.8 × 71.4 432.3 x 93.9 x 17.8 500cd/m2 1000:1 16.7M 30000 hours Android 8.1 12V DC no ≤18W 16.4
LUXX-ESP30-700

LUXX-ESP30-700-W

23.1 inch 1920 x 158 585.6 × 48.19 599 x 62 x 16.2 700cd/m2 3000:1 16.7M 30000 hours Android 8.1 12V DC
15-36V DC
no
yes
≤18W 23.1

23.1 Touch

23.1 Wide Input

LUXX-ESP35-700

LUXX-ESP35-700-W

24 inch 1920 x 360 597.888 × 112.104 617.5 x 137 x 27.2 700cd/m2 1200:1 16.7M 30000 hours Android 8.1 12V DC
15-36V DC
no
yes
≤20W 24

24 Wide Input

LUXX-ESP45-700

LUXX-ESP45-700-W

29 inch 1920 x 540 705.6 x 198.45 721 x 226.25 x 40.3 700cd/m2 1200:1 16.7M 30000 hours Android 8.1 12V DC
15-36V DC
no
yes
≤30W 29

29 Wide Input

LUXX-ESP50-400

LUXX-ESP50-400-W

35 inch 2880 x 158 878.4 × 48.19 891.6 x 60.4 x 16 400cd/m2 3000:1 1.07G 30000 hours Android 9.0 12V DC
15-36V DC
no
yes
≤18W 35

35 Wide Input

LUXX-ESP55-700

LUXX-ESP55-700-W

37 inch 1920 x 540 899.712 × 253.044 914.9 x 280.9 x 45.7 700cd/m2 1000:1 16.7M 30000 hours Android 8.1 12V DC
15-36V DC
no
yes
≤40W 37

37 Wide Input

LUXX-ESP60-500

LUXX-ESP60-500-W

37.8 inch 2880 x 158 959 × 52.614 977 x 70 x 21 500cd/m2 1000:1 1.07G 30000 hours Android 9.0 12V DC
15-36V DC
no
yes
≤28W 37.8

37.8 Wide Input

LUXX-ESP65-500

LUXX-ESP65-500-W

47.1 inch 3840 x 160 1196.16 × 49.84 1214.2 x 67.7 x 28.2 500cd/m2 1000:1 16.7M 30000 hours Android 9.0 12V DC
15-36V DC
no
yes
≤35W 47.1

47.1 Wide Input

LED Shelf Tag Light

Input Voltage 12V DC
Power 22W/m
CCT 2700-6500K
Material PMMA, PVC 3100mm

Various Sizes

8.8” to 47.1” for shelving
up to 1.2m

Mounting Rail

The mounting rail is an aluminum profile which can mounts multiple LCD screens and LED shelf tags, with a maximum length of 3.1m, A power track can be added to the back.
