ESP20 – 16.4” Digital Stretch Screen

Point of purchase screen

ESP20 – 16.4” Digital Stretch Screen

Turn Every Shelf into a Visual Experience

Reimagine your in-store promotions and shelf-edge displays with the eShelf® ESP20 – a sleek and modern 16.4” retail digital display screen designed to grab attention in any retail, hospitality, or commercial setting. With stunning clarity, standalone functionality, and round-the-clock performance, the ESP20 is your go-to solution for vibrant messaging in compact spaces.

Whether you’re showcasing promotions, pricing, product information, or digital menus, the ESP20 delivers reliable and dynamic performance that elevates customer engagement—no network connection required.

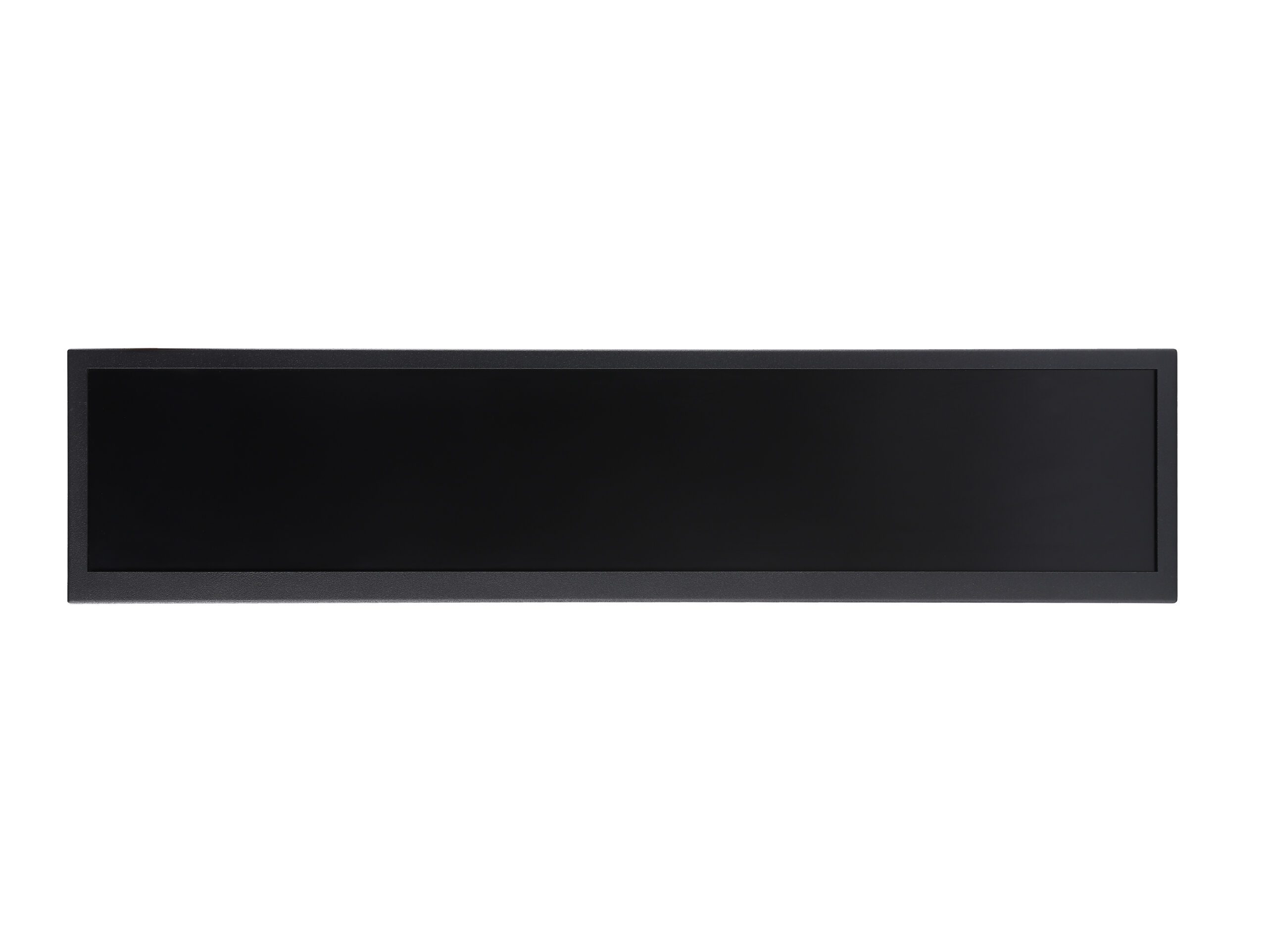

Long LCD screen

View Spec Sheet for ESP20 – 16.4″ Digital Stretch Screen >

Why Choose the ESP20?

✔️ Small but powerful visual presence
✔️ Plug-and-play simplicity with Android OS
✔️ Ideal for high-density product areas
✔️ Efficient power usage and easy installation

In-aisle digital signage

Screen Size

16.4” high-resolution LCD

In-aisle digital signage

Resolution

1366 x 238

In-aisle digital signage

Brightness

500 cd/m²

In-aisle digital signage

Contrast Ratio

3000:1

In-aisle digital signage

Frequency

60 Hz

In-aisle digital signage

Dimensions

432.3 x 93.9 x 17.8 mm

In-aisle digital signage

Backlight

WLED

In-aisle digital signage

Display Colors

16.7 million

In-aisle digital signage

Response Time

6 ms

In-aisle digital signage

Active Area

409.8 x 71.4 mm

In-aisle digital signage

Viewing Angle

178° (H) / 178° (V)

In-aisle digital signage

Lifespan

30,000 hours

Electronic retail label

Perfect For:

  • Retail shelf-edge price and product displays
  • Smart labeling in convenience and electronics stores
  • Promotional visuals in compact spaces
  • Multi-screen messaging setups

Key Benefits

  • Vibrant Visuals: High-definition LCD panel with 500-nit brightness and 178° wide viewing angles for crystal-clear content.
  • Always On: Built for 24/7 continuous operation, ensuring your messages are always visible.
  • Stand-Alone Operation: No internet or external devices required—upload content directly and go.
  • Slim & Sleek: Compact design fits seamlessly into retail shelves, kiosks, or countertop displays.
  • Energy Efficient: Consumes less than 18W of power while maintaining brilliant display performance.

System & Performance

  • CPU: Rockchip PX30 Quad-core ARM Cortex-A35
  • RAM: 1GB DDR3 (2GB optional)
  • Internal Storage: 8GB eMMC (16GB/32GB/64GB optional)
  • Expandable Storage: TF card slot supporting up to 64GB
  • Operating System: Android 8.1

Connectivity & Interfaces

  • Wi-Fi: 2.4G
  • Bluetooth: v4.0
  • Ports:

    • 1× Micro USB (OTG)
    • 1× TF Card Slot
    • 1× DC 3513 Power Input (12V/3A, special adapter required)

Media Format Support

  • Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
  • Video: 1080P @ 60fps decoding (H.265, H.264, VC-1, MPEG-1/2/4, VP8), encoding H.264/VP8
  • Image: JPG, BMP, PNG with slideshow, rotation, and zoom features

Environment & Durability

  • Operating Temp: 0℃ to 45℃
  • Storage Temp: -20℃ to 60℃
  • Humidity Tolerance: 10% to 85% (operating), 5% to 95% (storage)
  • Atmospheric Pressure: 86–104 kPa

Ready to Deploy the ESP20?

Reach out today for pricing, demos, and deployment options.
Phone: 1.704.909.7361
Email: info@luxx.com
