Products > eShelf® Stretch Screen >
ESP10 – 8.8” Digital Stretch Screen
ESP10 – 8.8″ Digital Stretch Screen
Compact Shelf-Level Display That Packs a Punch
The eShelf® ESP10 is the ideal solution for compact retail spaces, product labeling, and promotional messaging. At just 8.8″, this retail digital stretch screen offers a powerful and sharp 1920 x 480 resolution display, enabling you to deliver vibrant visuals right at the point of decision.
Whether you’re enhancing a product label, displaying price and stock updates, or creating motion-rich branded content, the ESP10 provides professional-grade clarity in a small, lightweight footprint. Engineered for 24/7 operation and running on Android 8.1, the ESP10 is reliable, easy to update, and seamlessly integrates into any shelf or display system
Why Choose the ESP10?
✔️ Small but powerful visual presence
✔️ Plug-and-play simplicity with Android OS
✔️ Ideal for high-density product areas
✔️ Efficient power usage and easy installation
Perfect For:
- Retail shelf-edge price and product displays
- Smart labeling in convenience and electronics stores
- Promotional visuals in compact spaces
- Multi-screen messaging setups
LCD Specifications
- Size 8.8”LCD Panel
- Active area 218.88(H) × 54.72(V)mm
- Resolution 1920(V) x 480(H)
- Brightness 500cd/m2
- Contrast ratio 800:1
- Display color 16.7M
- Backlight WLED
- Viewing angles 178°(H) X 178°(V)
- Response time 30ms
- Lifespan 30000 hours
Main Board Specifications
- CPU Rockchip PX30 Quad core ARM Cotex-A35
- RAM 1G DDR3 (1G/2G for optional)
- ROM 8G EMMC (8G/16G/32G/64G EMMC for optional)
- Memory extension TF Card extension with the highest support for 64GB
- System Android 8.1
- Internet Support 2.4G WIFI connection
- RTC real time clock Support timing on / off function
- Interfaces 1*micro USB (OTG), 1*TF card,1*Type-c (DC 12V input)
- Optional 4G module
- Customize available
Screen Specifications
- Input voltage 12V DC / 15-36V DC (incl. polarity protection)
- Power ≤10W
- Product size 240.6mm x 69.6mm x 16mm

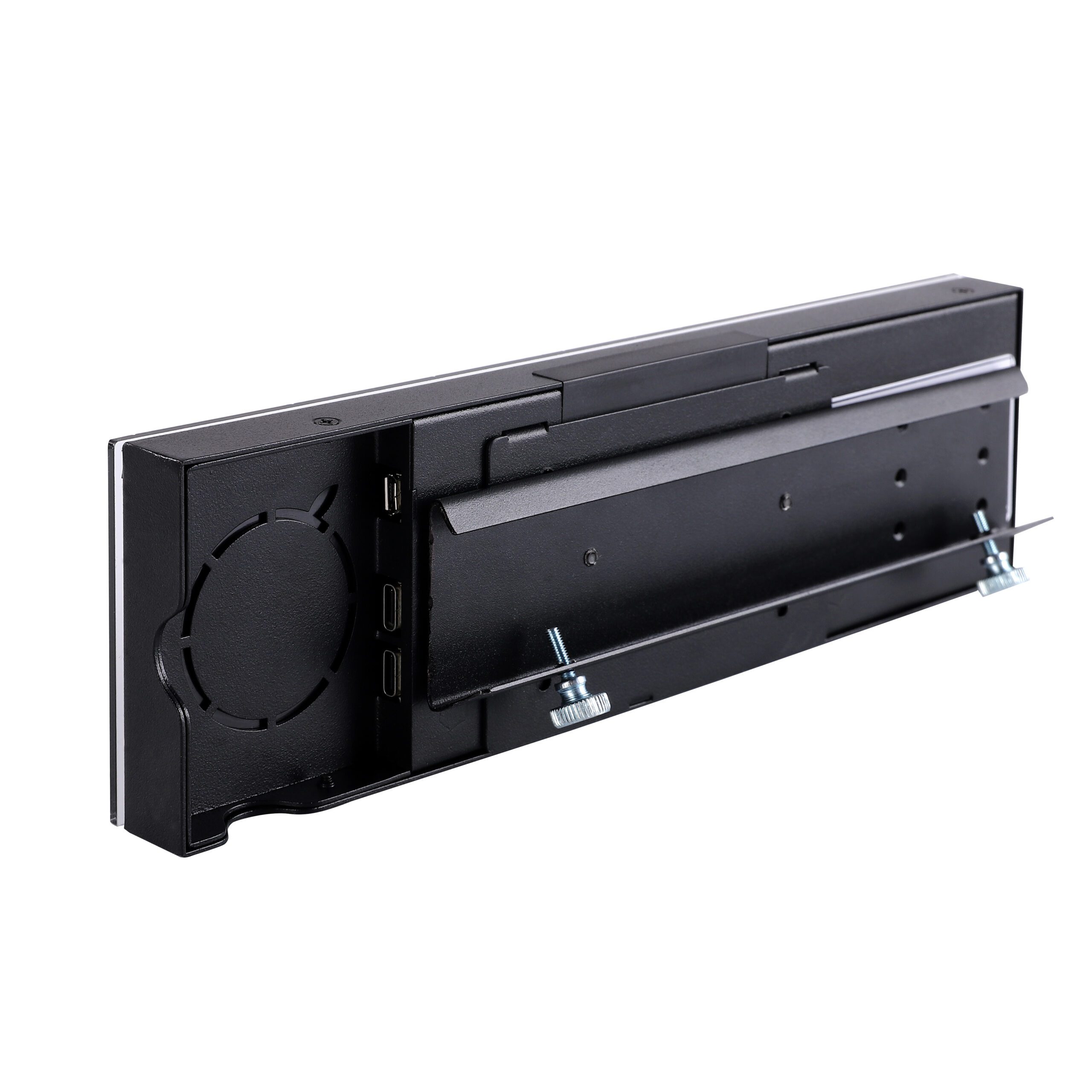

- Installation wall-mounted
- Material Metal materials
- Net Weight ≤0.5KG
- Surface treatment Black metal paint
Ready to Deploy the ESP10?
Reach out today for pricing, demos, and deployment options.
